Selbstzentrierende
Maximales Drehmoment: 2,700,000 Nm
Eigenschaften allgemein:
Innendurchmesser bis 1,000 mm
Außendurchmesser bis 1,110 mm
Spielfreie,Selbstzentrierende.
Leistungsstarke Antriebstechnik.
Kompakte Bauform, auch zum Einsatz für hohe Drehzahlen.
Einsetzbar von –40°C bis +280°C

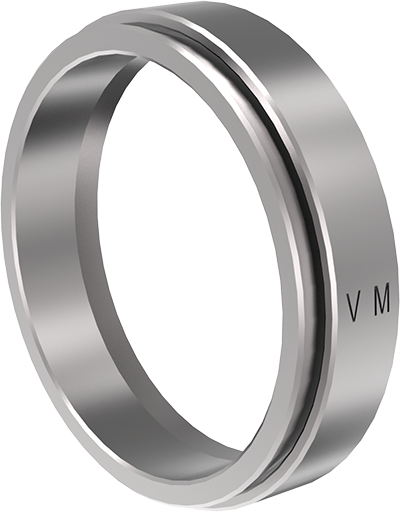

VRSHA
VRSHB

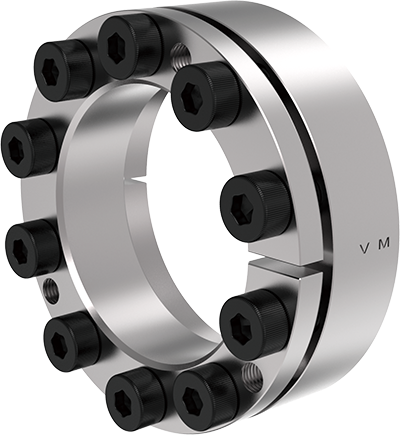

VRSHC

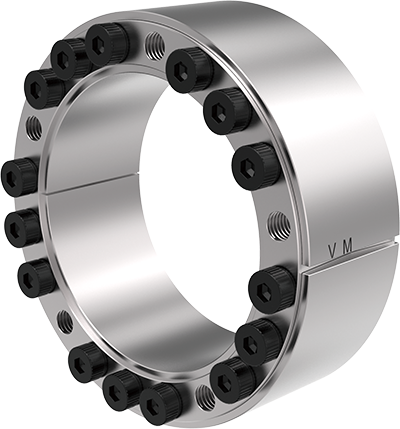

VRSHD

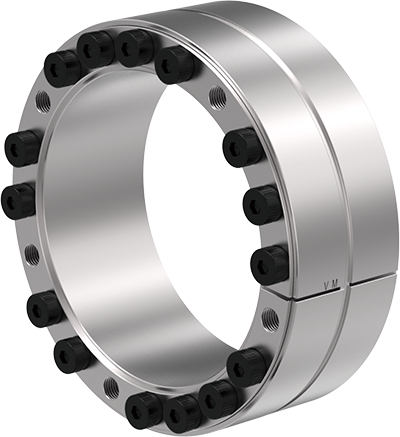

VRSHE
Datenblatt
| Größe | Drehmoment nominal(Nm) | Innendurchmesser(mm) | Außendurchmesser(mm) |
|---|---|---|---|
| B-19×47 | 19 | 47 | 298 |
| B-20×47 | 20 | 47 | 313 |
| B-22×47 | 22 | 47 | 345 |
| B-24×50 | 24 | 50 | 424 |
| B-25×50 | 25 | 50 | 441 |
| B-28×55 | 28 | 55 | 549 |
| B-30×55 | 30 | 55 | 588 |
| B-32×60 | 32 | 60 | 752 |
| B-35×60 | 35 | 60 | 822 |
| B-38×65 | 38 | 65 | 1042 |
| B-40×65 | 40 | 65 | 1097 |
| B-42×75 | 42 | 75 | 1740 |
| B-45×75 | 45 | 75 | 1864 |
| B-48×80 | 48 | 80 | 1988 |
| B-50×80 | 50 | 80 | 2071 |
| B-55×85 | 55 | 85 | 2658 |
| B-60×90 | 60 | 90 | 2900 |
| B-65×95 | 65 | 95 | 3587 |
| B-70×110 | 70 | 110 | 5345 |
| B-75×115 | 75 | 115 | 5727 |
| B-80×120 | 80 | 120 | 6108 |
| B-85×125 | 85 | 125 | 7417 |
| B-90×130 | 90 | 130 | 7854 |
| B-95×135 | 95 | 135 | 9326 |
| B-100×145 | 100 | 145 | 11362 |
| B-110×155 | 110 | 155 | 12498 |
| B-120×165 | 120 | 165 | 15578 |
| B-130×180 | 130 | 180 | 21095 |
| B-140×190 | 140 | 190 | 24993 |
| B-150×200 | 150 | 200 | 29217 |
| B-160×210 | 160 | 210 | 33756 |
| B-170×225 | 170 | 225 | 39483 |
| B-180×235 | 180 | 235 | 45606 |
| B-190×250 | 190 | 250 | 56163 |
| B-200×260 | 200 | 260 | 63342 |
| B-220×285 | 220 | 285 | 81960 |
| B-240×305 | 240 | 305 | 103162 |
| B-260×325 | 260 | 325 | 126669 |
| B-280×355 | 280 | 355 | 157339 |
| B-300×375 | 300 | 375 | 189653 |
| B-320×405 | 320 | 405 | 264108 |
| B-340×425 | 340 | 425 | 280614 |
| B-360×455 | 360 | 455 | 363061 |
| B-380×475 | 380 | 475 | 383232 |
| B-400×495 | 400 | 495 | 403402 |
| B-420×515 | 420 | 515 | 470633 |
| B-440×545 | 440 | 545 | 579506 |
| B-460×565 | 460 | 565 | 605848 |
| B-480×585 | 480 | 585 | 663811 |
| B-500×605 | 500 | 605 | 724383 |
| B-520×630 | 520 | 630 | 770487 |
| B-540×650 | 540 | 650 | 800121 |
| B-560×670 | 560 | 670 | 885064 |
| B-580×690 | 580 | 690 | 954884 |
| B-600×710 | 600 | 710 | 987811 |
| B-620×730 | 620 | 730 | 1061550 |
| B-640×750 | 640 | 750 | 1137957 |
| B-660×770 | 660 | 770 | 1216963 |
| B-680×790 | 680 | 790 | 1253841 |
| B-700×810 | 700 | 810 | 1382913 |
| B-720×830 | 720 | 830 | 1422425 |
| B-740×850 | 740 | 850 | 1510688 |
| B-760×870 | 760 | 870 | 1601545 |
| B-780×890 | 780 | 890 | 1669384 |
| B-800×910 | 800 | 910 | 1738541 |
| B-820×930 | 820 | 930 | 1835982 |
| B-840×950 | 840 | 950 | 1936101 |
| B-860×970 | 860 | 970 | 2038809 |
| B-880×990 | 880 | 990 | 2144197 |
| B-900×1010 | 900 | 1010 | 2222575 |
| B-920×1030 | 920 | 1030 | 2302221 |
| B-940×1050 | 940 | 1050 | 2414196 |
| B-960×1070 | 960 | 1070 | 2528755 |
| B-980×1090 | 980 | 1090 | 2613719 |
| B-1000×1110 | 1000 | 1110 | 2700000 |
| Q-25×55 | 25 | 55 | 799 |
| Q-28×55 | 28 | 55 | 895 |
| Q-30×55 | 30 | 55 | 959 |
| Q-35×60 | 35 | 60 | 1306 |
| Q-38×75 | 38 | 75 | 2567 |
| Q-40×75 | 40 | 75 | 2702 |
| Q-42×75 | 42 | 75 | 2837 |
| Q-45×75 | 45 | 75 | 3040 |
| Q-48×80 | 48 | 80 | 3707 |
| Q-50×80 | 50 | 80 | 3861 |
| Q-55×85 | 55 | 85 | 4779 |
| Q-60×90 | 60 | 90 | 5793 |
| Q-65×95 | 65 | 95 | 6276 |
| Q-70×110 | 70 | 110 | 10951 |
| Q-75×115 | 75 | 115 | 11733 |
| Q-80×120 | 80 | 120 | 13768 |
| Q-85×125 | 85 | 125 | 15959 |
| Q-90×130 | 90 | 130 | 16898 |
| Q-95×135 | 95 | 135 | 17837 |
| Q-100×145 | 100 | 145 | 25029 |
| Q-110×155 | 110 | 155 | 30039 |
| Q-120×165 | 120 | 165 | 38226 |
| Q-130×180 | 130 | 180 | 48270 |
| Q-140×190 | 140 | 190 | 60654 |
| Q-150×200 | 150 | 200 | 69628 |
| Q-160×210 | 160 | 210 | 79220 |
| Q-170×225 | 170 | 225 | 100851 |
| Q-180×235 | 180 | 235 | 114414 |
| Q-190×250 | 190 | 250 | 128814 |
| Q-200×260 | 200 | 260 | 135594 |
| Q-220×285 | 220 | 285 | 167805 |
| Q-240×305 | 240 | 305 | 195100 |
| Q-260×325 | 260 | 325 | 221930 |
| Q-280×355 | 280 | 355 | 314194 |
| Q-300×375 | 300 | 375 | 374042 |
| Q-320×405 | 320 | 405 | 418936 |
| Q-340×425 | 340 | 425 | 466307 |
| Q-360×455 | 360 | 455 | 577426 |
| Q-380×475 | 380 | 475 | 638541 |
| Q-400×495 | 400 | 495 | 733255 |
| Q-420×515 | 420 | 515 | 769918 |
| Q-440×535 | 440 | 535 | 807670 |
| Q-460×555 | 460 | 555 | 844390 |
| Q-480×575 | 480 | 575 | 1027650 |
| Q-500×595 | 500 | 595 | 1071000 |
| Q-520×615 | 520 | 615 | 1193400 |
| Q-540×635 | 540 | 635 | 1239300 |
| Q-560×655 | 560 | 655 | 1371050 |
| Q-580×675 | 580 | 675 | 1419500 |
| Q-600×695 | 600 | 695 | 1514700 |
